Grandvue Hyper5 Module

Intel Barlow Ridge JHL9480 controller, Module PCB board designed using PCIe M Key gold finger link IO board. Hyper5 Module support thunderbolt 5 Data transfer speed 120Gbps, host upstream PD maximum charging power of 140W, Downstream support Thunderbolt 5 device daisy chain mode, PD charging power of 30W, PCIe M Key gold finger support DP2.1, USB 3.2 Gen2, PCIe Gen4x4, PD3.1 Function.

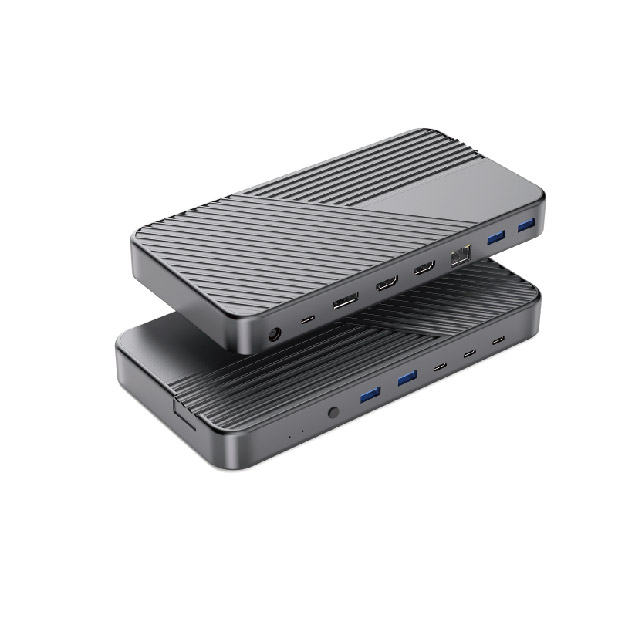

12 in 1 Docking Station / Model:TX003

Transfer Speed: 80/120Gbps
2xThunderbolt5
1xDP(8K@60Hz)
2xHDMI(8K@60Hz)
1xRJ45,up to 2.5Gbps
4xUSB3.0-A GEN2 (10Gbps)
1xUSB C GEN2 (10Gbps)
1xDC,connect with power adapter (20V/7.5A)
1xNVME (Up to 80Gbps)
Supports SSD Size: 2230/2242/2260/2280
Aluminum Housing

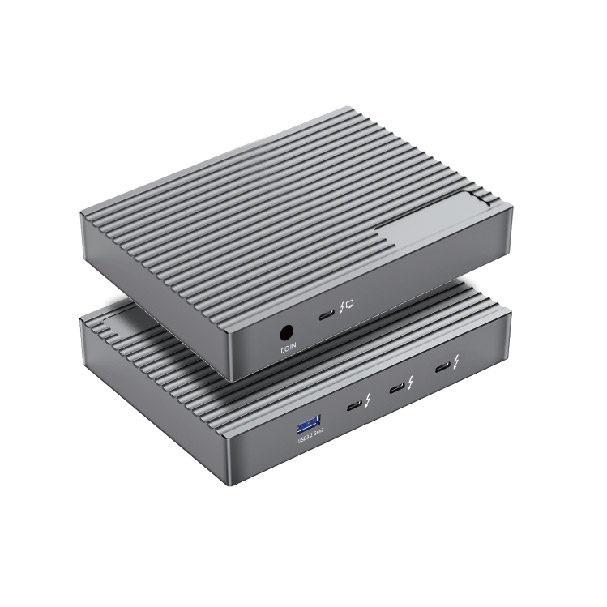

5 in 1 Docking Station / Model:TX004

Transfer Speed:80/120Gbps
3xThunderbolt5
1xUSB3.0-A GEN2 (10Gbps)
1xDC,connect with power
adapter(20V/7.5A)
Aluminum Housing
